C512-KU series

Pullprene® Polyurethane thick crown tread mold-on Cast iron castors

*Plastic dust ring to protect ball bearings

*The brake is equipped with an unlocking

pedal. The brake block is made of nylon

material, which does not damage the tread.

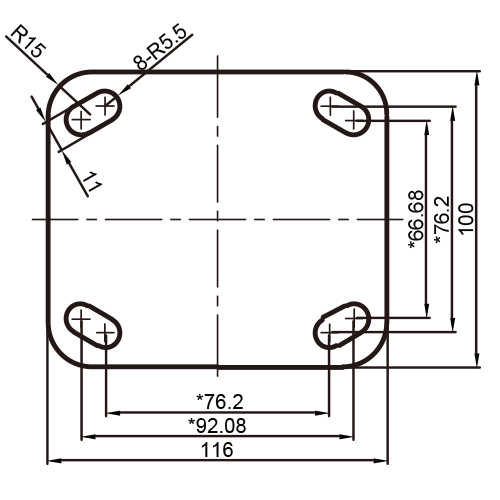

*Top plate thickness

6 mm

*Kingpin size

16 mm

*Surface Finish

Blue zinc plated

Bead structure:

Rigid	Swivel	Side Brake	Total Brake	Dia. x Width	Offset (w/ Brake)	Total Height	Load Capacity

C512R/KU1050	C512S/KU1050	C512BA/KU1050	C512TJ/KU1050	100x50	80 (120)	142	300
C512R/KU1350	C512S/KU1350	C512BA/KU1350	C512TJ/KU1350	130x50	99 (120)	165	350
C512R/KU1550	C512S/KU1550	C512BA/KU1550	C512TJ/KU1550	150x50	116 (120)	189	450
C512R/KU2050	C512S/KU2050	C512BA/KU2050	C512TJ/KU2050	200x50	150 (120)	239	550
