Castors

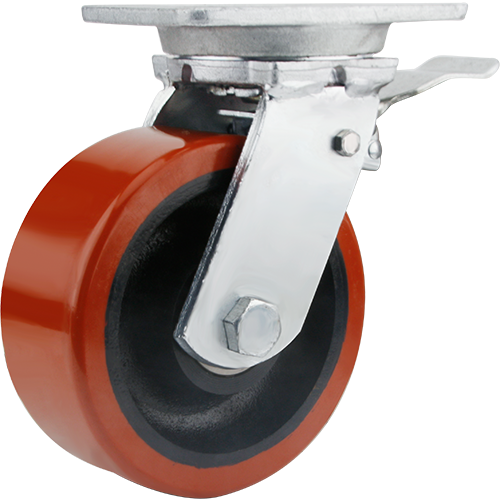

锻打超重型欧款 Herdar Pullprene® 聚氨酯铁芯轮组
C910TJ/EU2080 series:
product manual: 1.Top plate thickness 12 mm
2.Kingpin size: 20 mm
3.Surface Finish: Blue zinc plated
4.Features:25mm diameter kingpin is integrally forged with the top plate. Extra heavy duty drop forged steel castor for high load capacity.
Rolling resistance
Mute operation
Ground protection
Bookmark Recommend to him Inquiries PDF downloads 400-9009293
Technical Parameters: (mm, kg, ℃)
Dia. x Width(DxW) 200x80 mm
Offset (w/ Brake)(R) 160 mm
Total Height(H) 269 mm
Bolt hole diameter(d) 14 mm
Top plate size(AXB) 184.5X134 mm
Bolt hole spacing(axb) 131.5X85 mm
Max Load Capacity 1200 kg
Hardness 92± 3 Shore A
Bearing type Ball bearing
