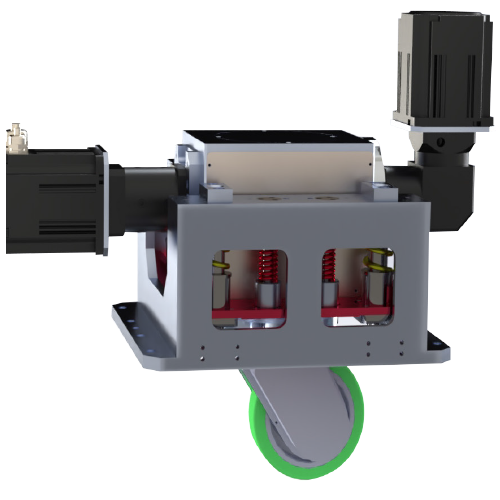

AM-2 MECHANICAL DECOUPLED CASTORS

Wheels

AM-2

series:

product manual:	Used in omnidirectional mobile robots with decoupled active castors, it can achieve more flexible and precise movement in narrow spaces.

Rolling resistance
Mute operation
Ground protection

Bookmark

Recommend to him

PDF downloads

Technical Parameters:

(mm, kg, ℃)

Dimension (L×W×H)	530X290X445 mm
Wheel diameter (D)	125 mm
Max load capacity	300 kg
Max speed	1.1m/s
Shock absorber dimension (L×W×H)	290×258×45 mm
Turning radius	Omnidirectional
Net weight	30 kg
Hub Material	6061 Aluminium
Tread Material	Polyurethane (can be adjusted by request)
Hardness	73A (can be adjusted by request)
